Architectural · A-8FX55

Curtain Wall Head and Floor Slab Anchorage Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

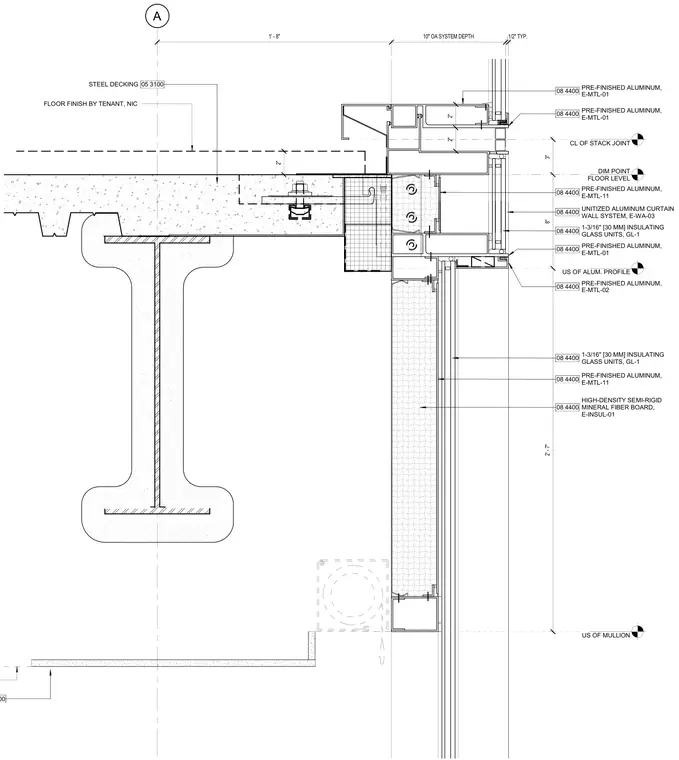

Head junction of a unitized aluminum curtain wall system anchoring to a concrete floor slab over steel decking and a supporting steel wide flange beam. The curtain wall framing incorporates pre-finished aluminum extrusions and one-and-three-sixteenth-inch insulating glass units with high-density semi-rigid mineral fiber board insulation inside the spandrel zone. An embed channel anchors the facade assembly to the slab edge, maintaining a ten-inch overall system depth with a three-inch stack joint dimension above floor level. The floor finish is by tenant and not in contract.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
