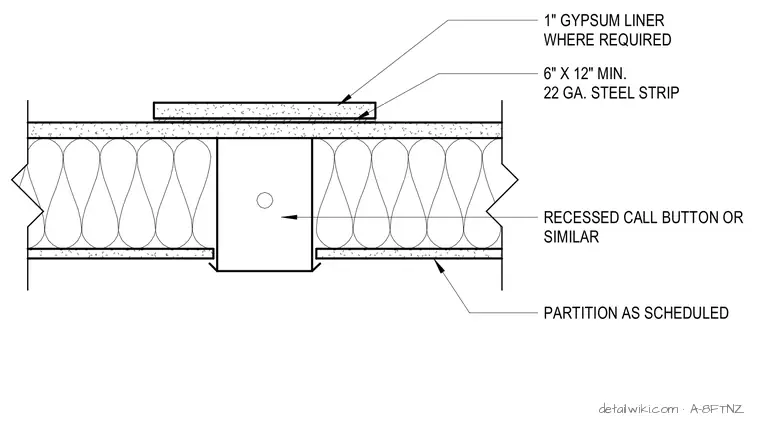

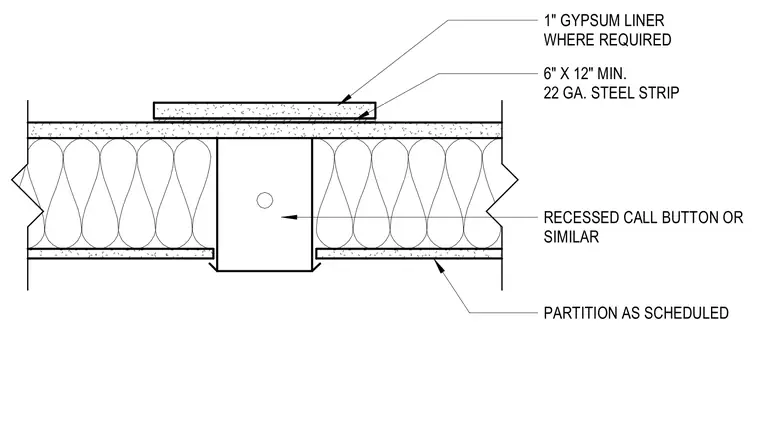

This assembly details the installation of a recessed call button or similar device within a partition wall as scheduled. The device is mounted within the wall cavity, supported by a minimum 6-inch by 12-inch 22-gauge steel strip. A 1-inch gypsum liner is provided behind the steel strip where required to maintain wall integrity and fire resistance.
Text on the drawing
X X X X 1 2 5/8" NUMERAL HEIGHT 3/4" BUTTON DIA. EMERGENCY ALARM DOOR OPEN DOOR CLOSED MAIN ENTRY FLOOR 35" MIN 48" A.F.F. MAX. FOR FRONT APPROACH A.F.F. 54" A.F.F. MAX. FOR PARALLEL APPROACH RECESSED CALL BUTTON OR SIMILAR PARTITION AS SCHEDULED 6" X 12" MIN. 22 GA. STEEL STRIP 1" GYPSUM LINER WHERE REQUIRED
