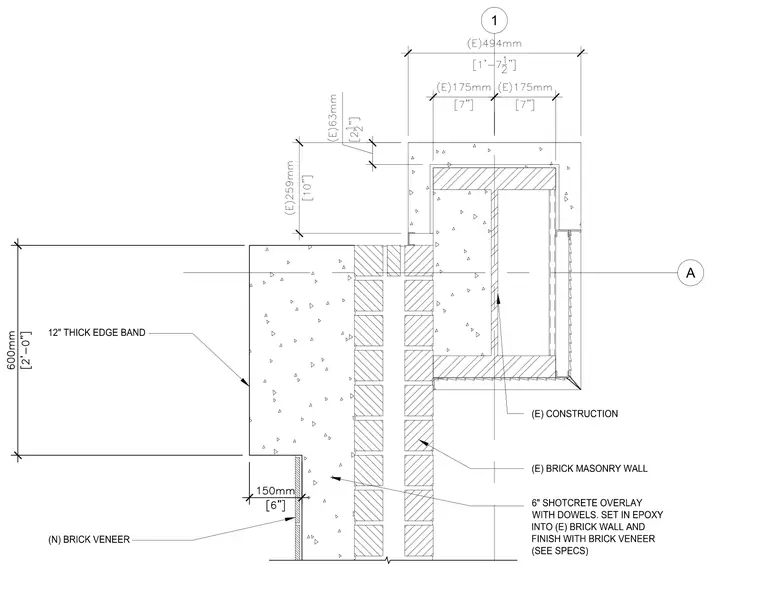

An existing brick masonry wall is reinforced with a six inch thick shotcrete overlay containing dowels set in epoxy. A twelve inch thick edge band frames the assembly, which is finished with new brick veneer per specifications. Dimensions detail the concrete thickness and offset alignments relative to the existing construction.
A 12" THICK EDGE BAND 1 (E) BRICK MASONRY WALL (E) CONSTRUCTION 6" SHOTCRETE OVERLAY WITH DOWELS. SET IN EPOXY INTO (E) BRICK WALL AND FINISH WITH BRICK VENEER (SEE SPECS) (N) BRICK VENEER
