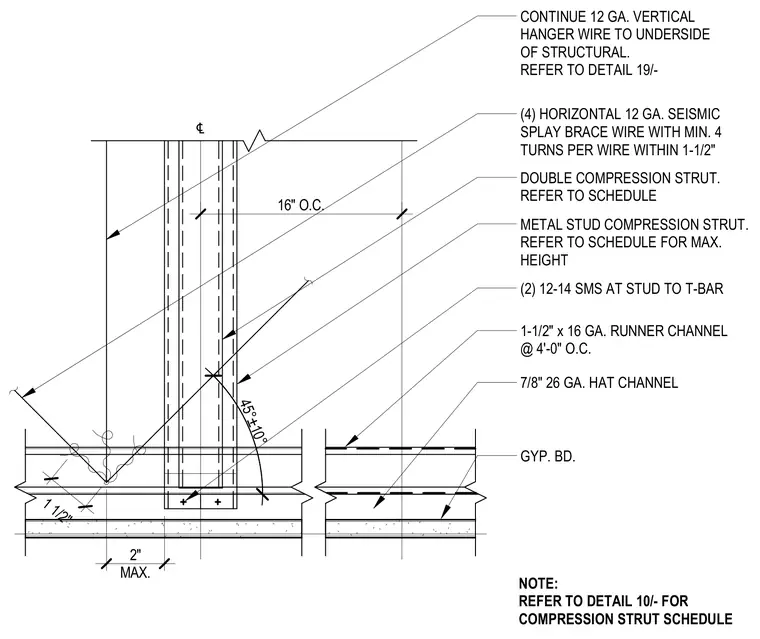

Seismic bracing configuration for a suspended gypsum board ceiling system. Four horizontal twelve-gauge seismic splay brace wires are anchored at a forty-five degree angle within one and a half inches of a double metal stud compression strut. The metal stud compression strut is fastened to a one and a half inch by sixteen-gauge runner channel spaced at four feet on center using two twelve-fourteen self-tapping metal screws at each stud to tee-bar connection. A seven-eighths inch by twenty-six-gauge hat channel supports the gypsum board ceiling finish below. Twelve-gauge vertical hanger wires continue upward to the underside of the structural framing.
℄ NOTE: REFER TO DETAIL 10/- FOR COMPRESSION STRUT SCHEDULE 45°±10° 1 1/2" 16" O.C. MAX. 2" CONTINUE 12 GA. VERTICAL HANGER WIRE TO UNDERSIDE OF STRUCTURAL. REFER TO DETAIL 19/- (4) HORIZONTAL 12 GA. SEISMIC SPLAY BRACE WIRE WITH MIN. 4 TURNS PER WIRE WITHIN 1-1/2" DOUBLE COMPRESSION STRUT. REFER TO SCHEDULE METAL STUD COMPRESSION STRUT. REFER TO SCHEDULE FOR MAX. HEIGHT (2) 12-14 SMS AT STUD TO T-BAR 1-1/2" x 16 GA. RUNNER CHANNEL @ 4'-0" O.C. 7/8" 26 GA. HAT CHANNEL GYP. BD.
