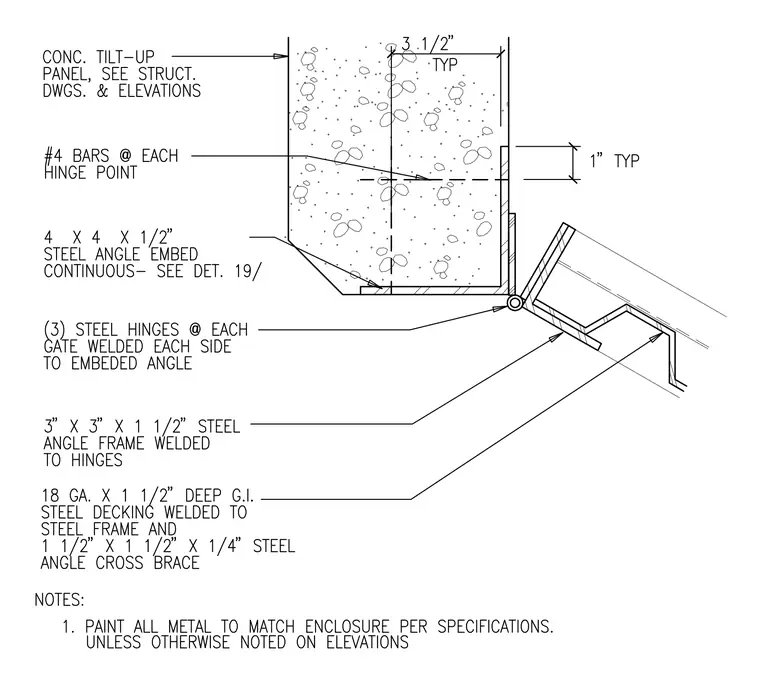

A concrete tilt-up panel integrates a continuous four-by-four-by-one-half-inch steel angle embed with number four reinforcing bars at each hinge point. Three steel hinges weld on each side to the embedded angle and connect to a three-by-three-by-one-half-inch steel angle frame. An eighteen-gauge by one-and-one-half-inch deep galvanized steel decking welds to the steel frame, stiffened by one-and-one-half-by-one-half-by-one-quarter-inch steel angle cross bracing. All exposed metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
