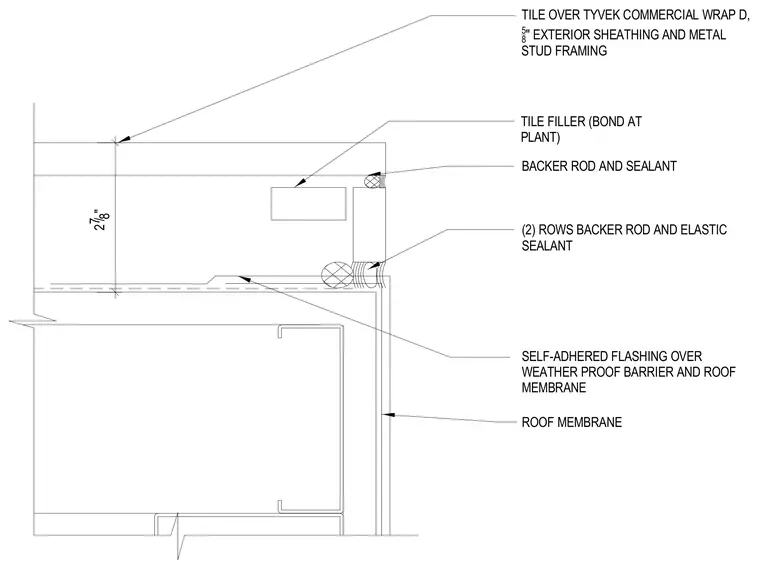

This assembly details a tile-to-base flashing transition over a cold-formed steel framed wall with five-eighths-inch exterior sheathing. A self-adhered flashing is applied over a weather-proof barrier and roof membrane. Two rows of backer rod and elastic sealant provide joint waterproofing at the transition. A tile filler, bonded at the plant, sits adjacent to the backer rod and sealant assembly.
27/8" BACKER ROD AND SEALANT ROOF MEMBRANE SELF-ADHERED FLASHING OVER WEATHER PROOF BARRIER AND ROOF MEMBRANE (2) ROWS BACKER ROD AND ELASTIC SEALANT TILE FILLER (BOND AT PLANT) TILE OVER TYVEK COMMERCIAL WRAP D, 5 8 " EXTERIOR SHEATHING AND METAL STUD FRAMING
