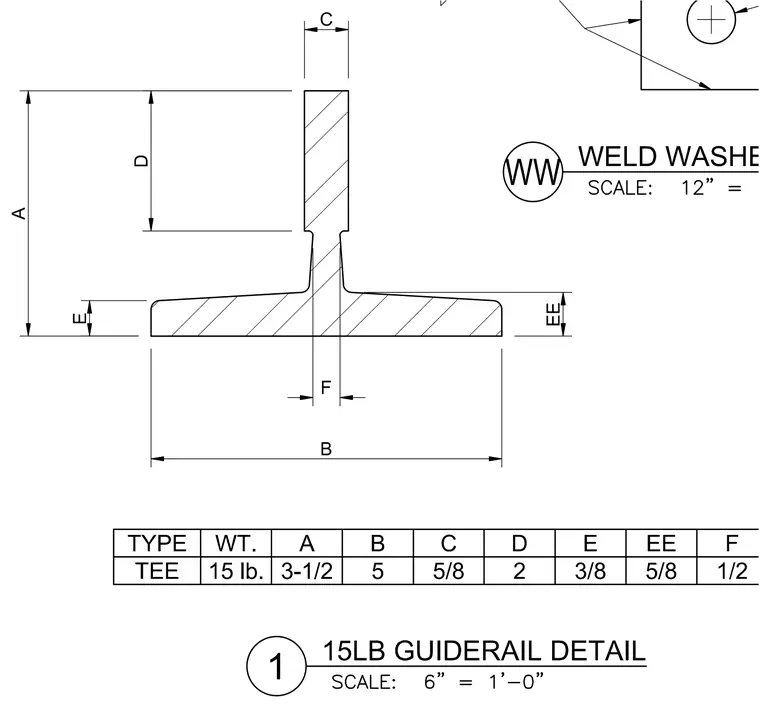

A 15 lb structural steel tee guiderail profile is detailed with dimensional callouts A through F for the stem height, flange width, and section thicknesses, accompanied by a schedule table defining the physical dimensions and weight. The tee features a 5 inch flange width, 3-1/2 inch overall height, 5/8 inch stem width, and varying flange thicknesses of 3/8 inch and 5/8 inch. An adjacent weld washer detail is partially visible with its own callout bubble and scale indicator.
