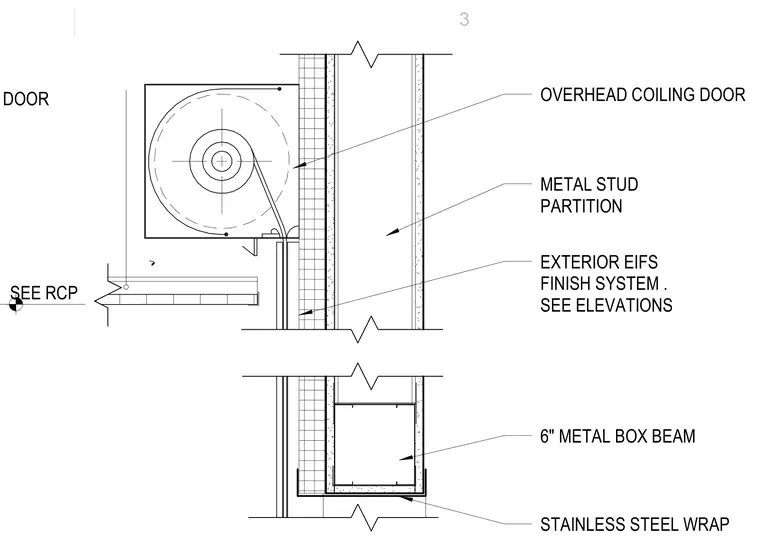

An overhead coiling door housing is mounted adjacent to a metal stud partition finished with an exterior insulation and finish system. A 6-inch metal box beam is integrated below the assembly, wrapped in stainless steel trim. The ceiling integration refers to the reflected ceiling plan for alignment.
OVERHEAD COILING DOOR METAL STUD PARTITION 6" METAL BOX BEAM SEE RCP STAINLESS STEEL WRAP EXTERIOR EIFS FINISH SYSTEM . SEE ELEVATIONS OVERHEAD COILING DOOR 3
