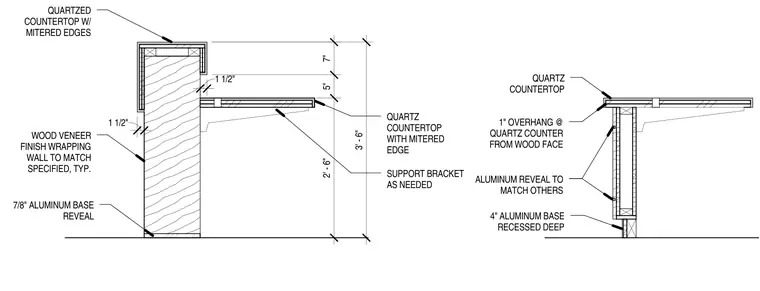

This reception desk assembly features a quartz countertop with mitered edges and a one-inch overhang from the wood face. The desk structure incorporates wood framing wrapped in a typical wood veneer finish. Support brackets are provided as needed beneath the countertop extension. A seven-eighths inch aluminum base reveal is integrated at the bottom of the wall, alongside a four-inch deep recessed aluminum base.
1 1/2" 1 1/2" 3' - 6" 2' - 6" 5" 7" 7/8" ALUMINUM BASE REVEAL SUPPORT BRACKET AS NEEDED QUARTZ COUNTERTOP WITH MITERED EDGE QUARTZ COUNTERTOP 1" OVERHANG @ QUARTZ COUNTER FROM WOOD FACE ALUMINUM REVEAL TO MATCH OTHERS 4" ALUMINUM BASE RECESSED DEEP QUARTZED COUNTERTOP W/ MITERED EDGES WOOD VENEER FINISH WRAPPING WALL TO MATCH SPECIFIED, TYP.
