Architectural · A-8EQWK

Exit Sign Above Warehouse Door

Materials

Elements

About this detail

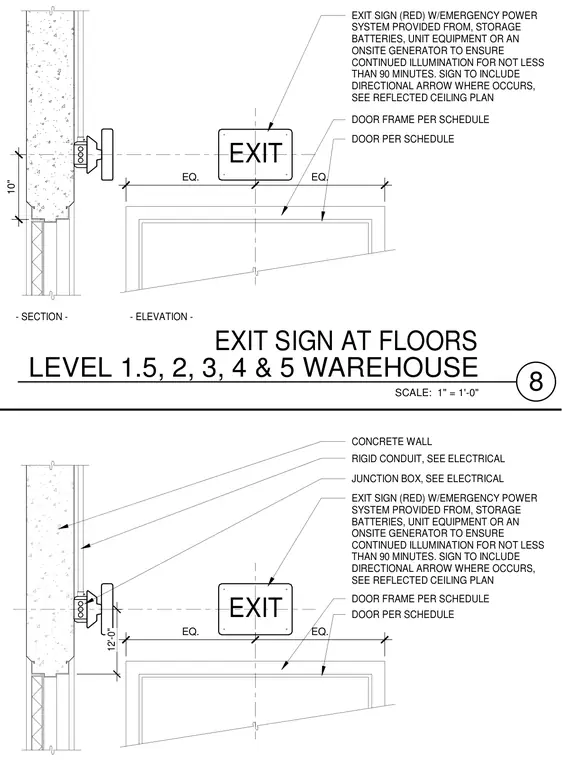

An illuminated red exit sign is centered above a warehouse door frame set within a concrete wall. The sign connects to a junction box and rigid electrical conduit, supported by an emergency power system providing at least ninety minutes of illumination from storage batteries, unit equipment, or an onsite generator. The ten-inch and twelve-foot vertical dimensions establish the placement above the door opening per the door schedule. Directional arrows are included where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
