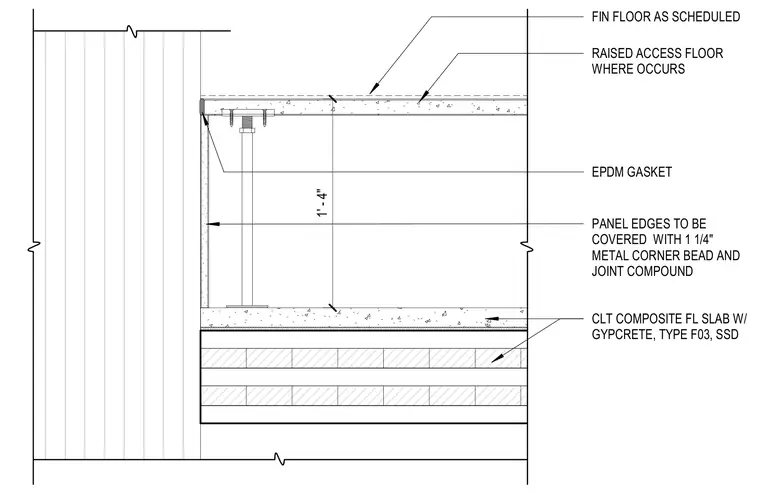

A raised access floor assembly bears upon a cross-laminated timber composite floor slab topped with type F03 gypcrete, maintaining a clear height of one foot four inches. An adjustable pedestal supports the raised floor panels, while an ethylene propylene diene monomer gasket seals the perimeter interface. Panel edges are finished with one and one-quarter inch metal corner bead and joint compound where they meet adjacent vertical surfaces.
RAISED ACCESS FLOOR WHERE OCCURS FIN FLOOR AS SCHEDULED EPDM GASKET CLT COMPOSITE FL SLAB W/ GYPCRETE, TYPE F03, SSD PANEL EDGES TO BE COVERED WITH 1 1/4" METAL CORNER BEAD AND JOINT COMPOUND 1' - 4" Ar F t C5 <» ■v 4 - . -a _ 7* Ar
