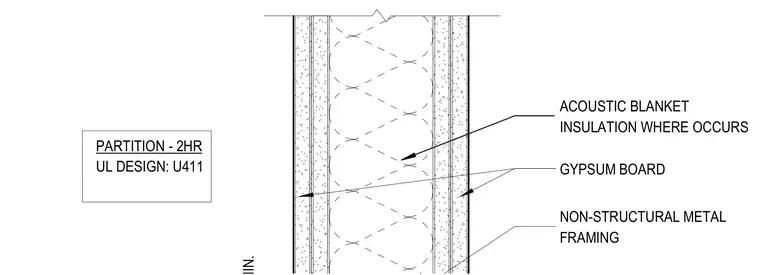

This two-hour fire-rated partition assembly consists of non-structural metal framing faced with multiple layers of gypsum board on both sides. An acoustic blanket insulation is installed within the stud cavity where required for sound attenuation. The construction complies with Underwriters Laboratories design U411.
I N . PARTITION - 2HR UL DESIGN: U411 GYPSUM BOARD NON-STRUCTURAL METAL FRAMING GYPSUM BOARD ACOUSTIC BLANKET INSULATION WHERE OCCURS
