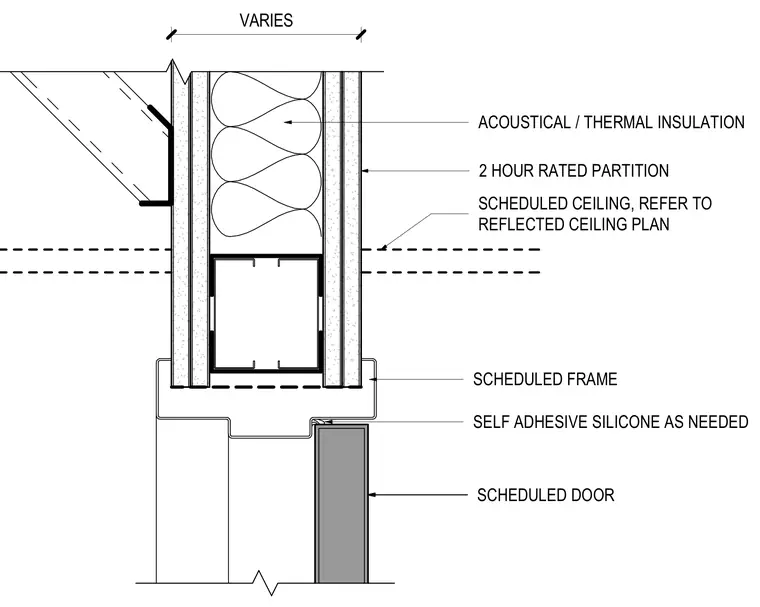

A scheduled hollow metal frame connects to a two-hour rated gypsum board partition filled with acoustical and thermal insulation. A self-adhesive silicone seal is applied as needed between the frame and the scheduled door. The scheduled ceiling intersects the partition at the head according to the reflected ceiling plan.
2 HOUR RATED PARTITION SCHEDULED FRAME ACOUSTICAL / THERMAL INSULATION VARIES SCHEDULED DOOR SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN SELF ADHESIVE SILICONE AS NEEDED
