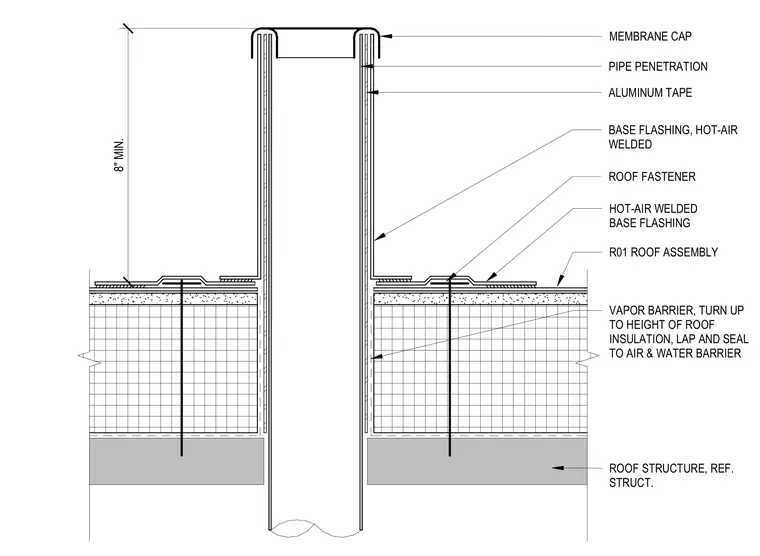

This assembly details a pipe penetration through a roof structure, incorporating a hot-air welded base flashing that extends at least eight inches above the roof surface. The pipe is secured with aluminum tape and capped with a membrane cap. The base flashing is integrated into the R01 roof assembly using roof fasteners. A vapor barrier is turned up to the full height of the roof insulation and is lapped and sealed to the air and water barrier.
Text on the drawing
R01 ROOF ASSEMBLY HOT-AIR WELDED BASE FLASHING ROOF FASTENER ROOF STRUCTURE, REF. STRUCT. BASE FLASHING, HOT-AIR WELDED ALUMINUM TAPE PIPE PENETRATION MEMBRANE CAP 8" MIN. VAPOR BARRIER, TURN UP TO HEIGHT OF ROOF INSULATION, LAP AND SEAL TO AIR & WATER BARRIER
