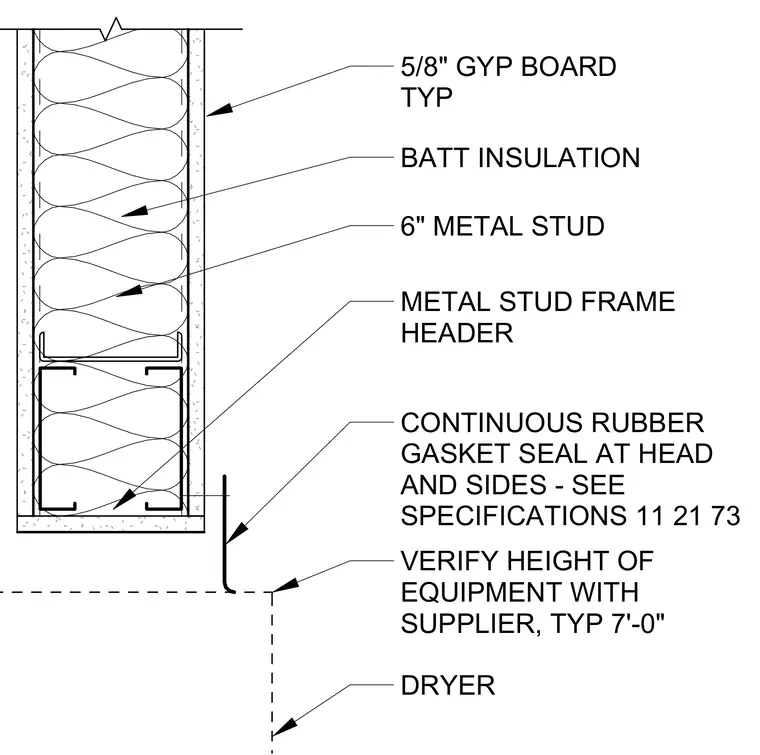

A dryer connects to a cold-formed steel framed wall assembly constructed with six-inch metal studs, batt insulation, and five-eighths inch gypsum board on both faces. A metal stud frame header supports the wall opening above the equipment. A continuous rubber gasket seal runs along the head and sides of the dryer interface to maintain enclosure integrity. The dryer equipment height is verified with the supplier at a typical dimension of seven feet zero inches.
METAL STUD FRAME HEADER CONTINUOUS RUBBER GASKET SEAL AT HEAD AND SIDES - SEE SPECIFICATIONS 11 21 73 DRYER VERIFY HEIGHT OF EQUIPMENT WITH SUPPLIER, TYP 7'-0" BATT INSULATION 6" METAL STUD 5/8" GYP BOARD TYP
