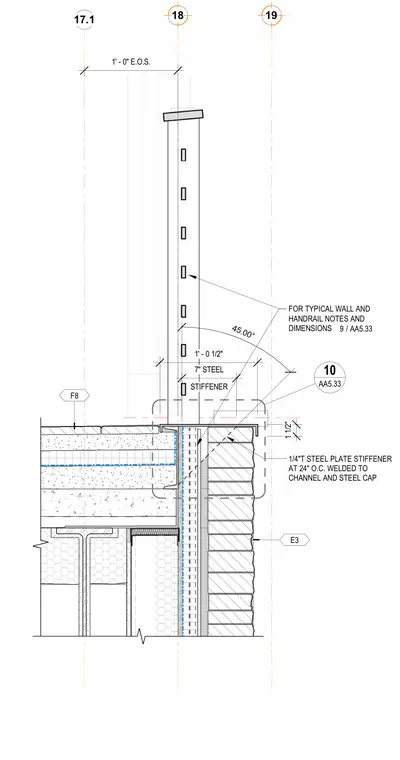

A vertical steel guardrail post mounts to a structural steel channel edge of slab, spaced one foot from the grid line. One-quarter-inch thick steel plate stiffeners are spaced at twenty-four inches on center, welded to both the channel and the steel cap. A steel plate stiffener measuring seven inches is integrated at the base connection. Grid lines seventeen point one, eighteen, and nineteen establish the horizontal alignment.
18 19 17.1 E3 F8 1' - 0" E.O.S. 1' - 0 1/2" STIFFENER 7" STEEL 1/4"T STEEL PLATE STIFFENER AT 24" O.C. WELDED TO CHANNEL AND STEEL CAP 45.00° 1 1/2" AA5.33 10 FOR TYPICAL WALL AND HANDRAIL NOTES AND DIMENSIONS / 9 AA5.33
