Architectural · A-8E26F

Insulated Metal Panel Transition at Concrete Tilt-Up Wall

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Facades / Cladding Waterproofing / Flashing

About this detail

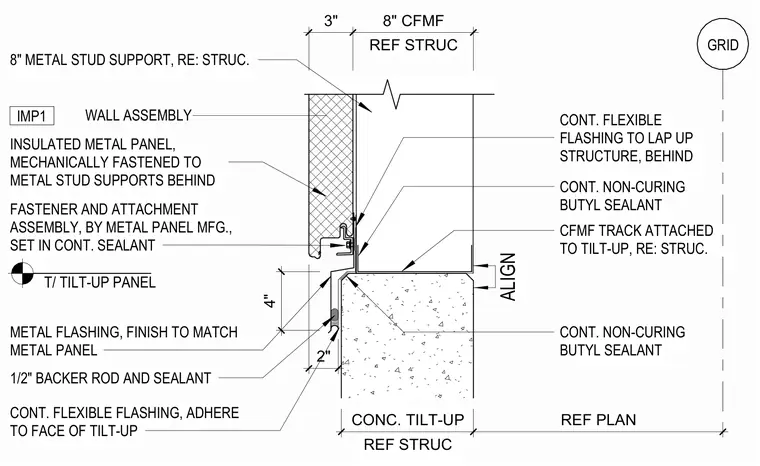

An insulated metal panel is mechanically fastened to cold-formed metal framing stud supports behind. A manufacturer-supplied fastener and attachment assembly is set in continuous sealant. Continuous flexible flashing laps up behind the structure and ties into continuous non-curing butyl sealant. A cold-formed metal framing track is attached to the concrete tilt-up panel. A finish-matched metal flashing bridges the junction, backed by continuous non-curing butyl sealant, continuous flexible flashing adhered to the face of the tilt-up, and a one-half-inch backer rod and sealant joint.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
