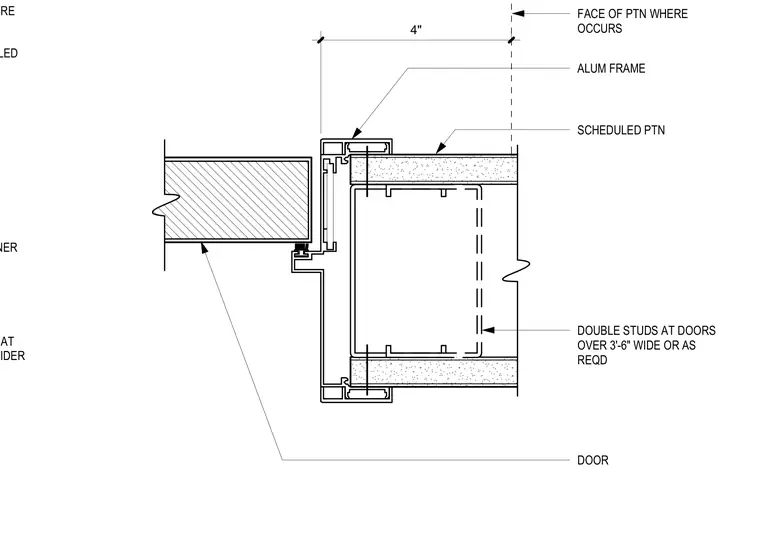

An aluminum door frame secures the perimeter of a scheduled door leaf against a scheduled partition assembly. The partition is framed with double studs at doors over three feet six inches wide or as required. The aluminum frame has a four-inch profile dimension from the face of the partition where it occurs, with a zero-point-zero-three-one-two-inch minimum thickness at doors forty-eight inches and wider.
0.0312" THICK MIN AT DOORS 48" AND WIDER FACE OF PTN WHERE DOOR AS SCHEDULED DR FRAME FASTENER DOUBLE STUDS AT DOORS OVER 3'-6" WIDE OR AS REQD SCHEDULED PTN DOOR FACE OF PTN WHERE OCCURS ALUM FRAME 4"
