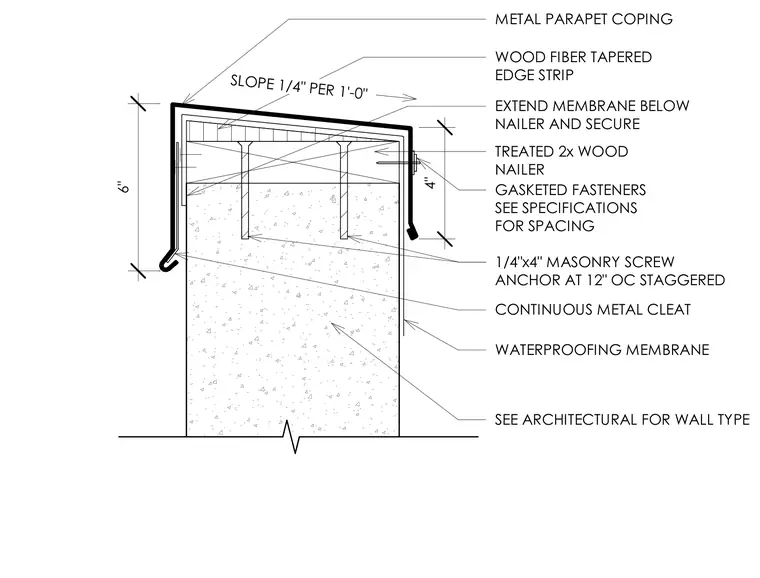

A metal parapet coping caps the wall assembly, featuring a wood fiber tapered edge strip to provide a slope of one-quarter inch per one foot across the top. The coping is secured by gasketed fasteners and hooked over a continuous metal cleat on the exterior face. A treated two-inch by four-inch wood nailer sits atop the wall, anchored by one-quarter-inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. A waterproofing membrane extends below the nailer and is secured along the wall assembly.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
