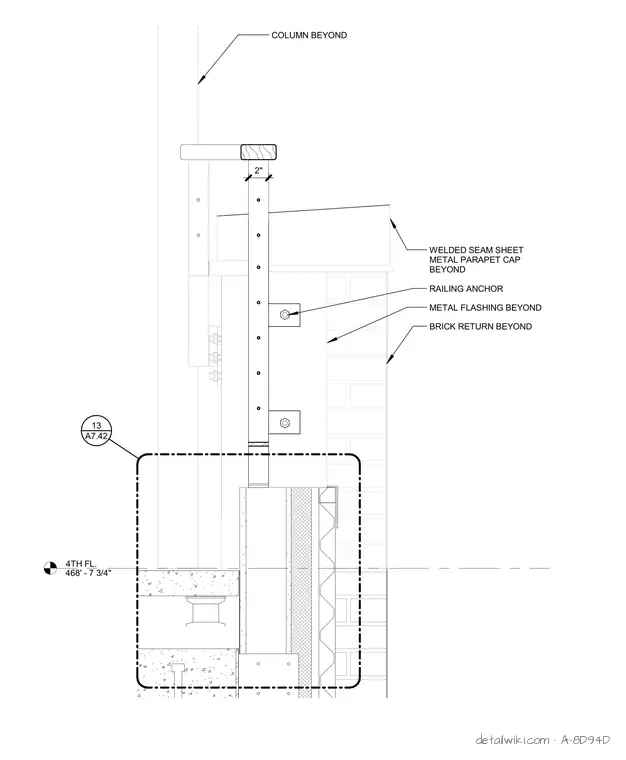

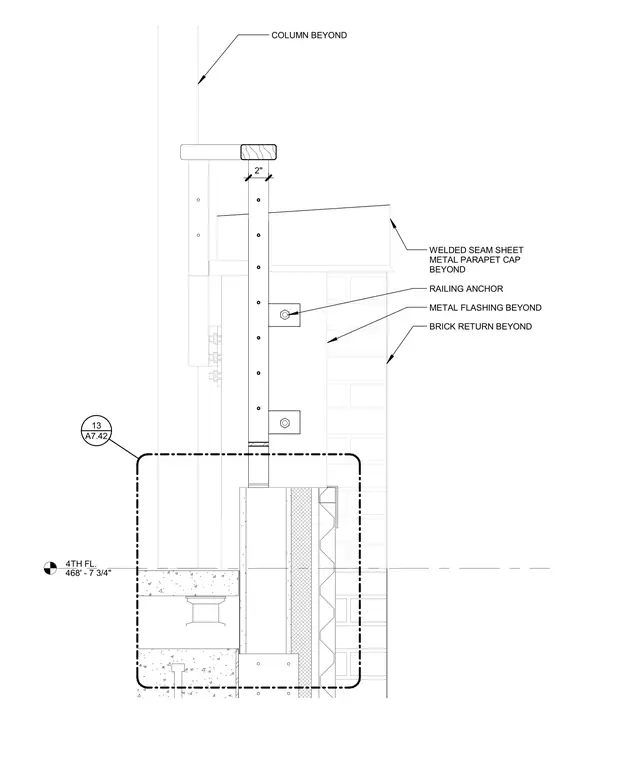

A-8D94D — East Terrace Guardrail at Gap in Parapet

Architectural · A-8D94D

East Terrace Guardrail at Gap in Parapet

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A7.42
Discipline: Architectural

Materials

Brick Metal (misc.)Steel

Elements

Anchors / Embeds Columns Facades / Cladding Parapets Railings / Guards Waterproofing / Flashing

Connections

Base Plate / Anchorage Welded Connection

Text on the drawing

4TH FL. 468' - 7 3/4" 2" A7.42 13 COLUMN BEYOND WELDED SEAM SHEET METAL PARAPET CAP BEYOND METAL FLASHING BEYOND BRICK RETURN BEYOND RAILING ANCHOR
