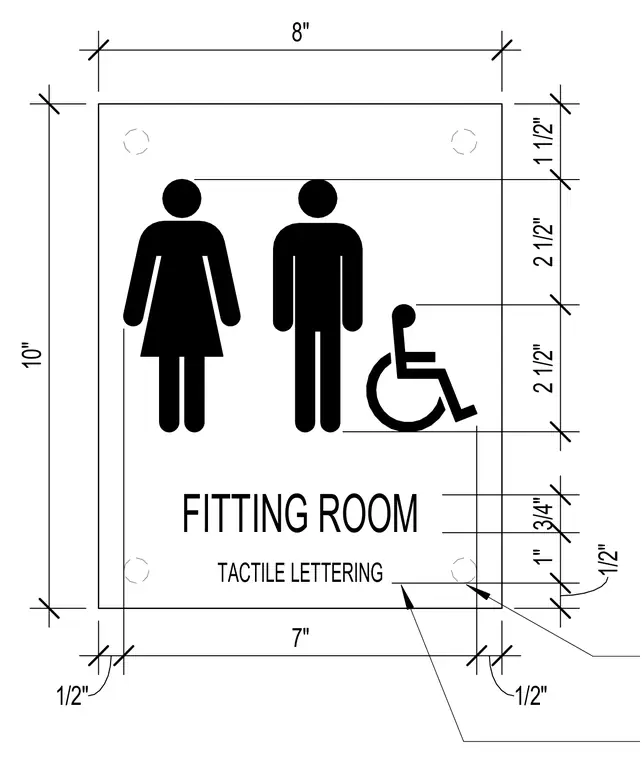

An ADA-compliant fitting room sign measuring 8 inches wide by 10 inches high establishes sizing, layout, and mounting dimensions. The sign face features centered male, female, and wheelchair accessibility pictograms in the upper portion, set one and one-half inches below the top edge. The text 'FITTING ROOM' appears directly below the icons in raised tactile lettering, followed by 'TACTILE LETTERING' sub-text near the bottom. Mounting and alignment dimensions are provided across the perimeter, establishing margins and spacing for the graphics and text.
FITTING ROOM 1 1/2" 2 1/2" 2 1/2" 8" 10" 1/2" 7" 1/2" TACTILE LETTERING 1/2" 1" 3/4"
