Architectural · A-8D6FW

Partial Height Partition at Suspended Lay-In Ceiling

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Partitions Ceilings Insulation

About this detail

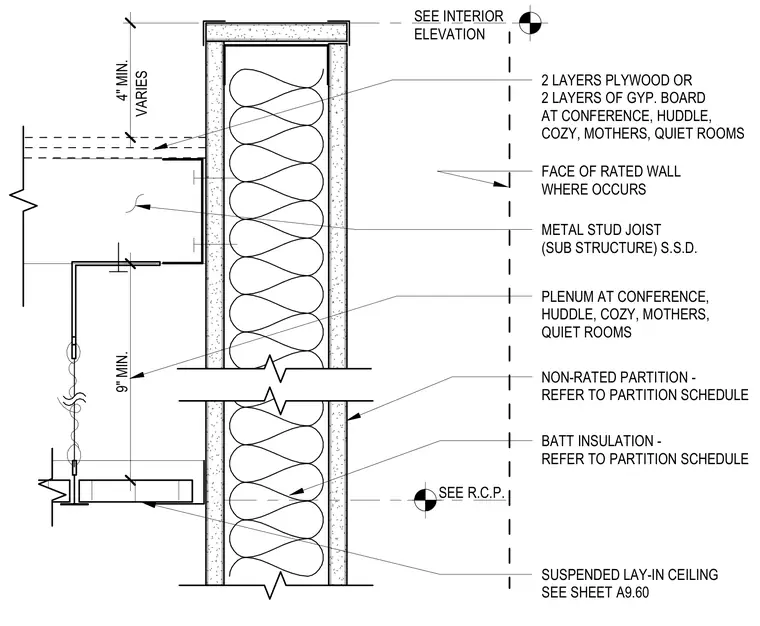

A partial height partition terminates above a four-inch minimum suspended lay-in ceiling. The assembly features cold-formed metal stud framing with batt insulation centered in the cavity and two layers of gypsum board or plywood applied at special rooms such as conference, huddle, cozy, mothers, and quiet rooms. A metal stud joist sub-structure supports the ceiling plenum, maintaining a nine-inch minimum clearance above the ceiling grid.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
