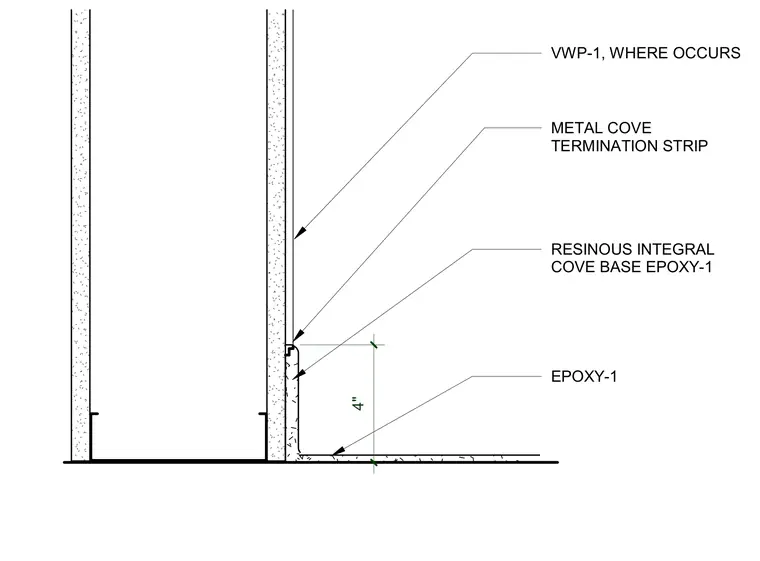

An epoxy-1 resinous flooring system transitions into a four-inch high integral cove base against the wall. A metal cove termination strip caps the top edge of the base. A vinyl wall protection component labeled VWP-1 is installed above where required.
EPOXY-1 RESINOUS INTEGRAL COVE BASE EPOXY-1 METAL COVE TERMINATION STRIP VWP-1, WHERE OCCURS 4"
