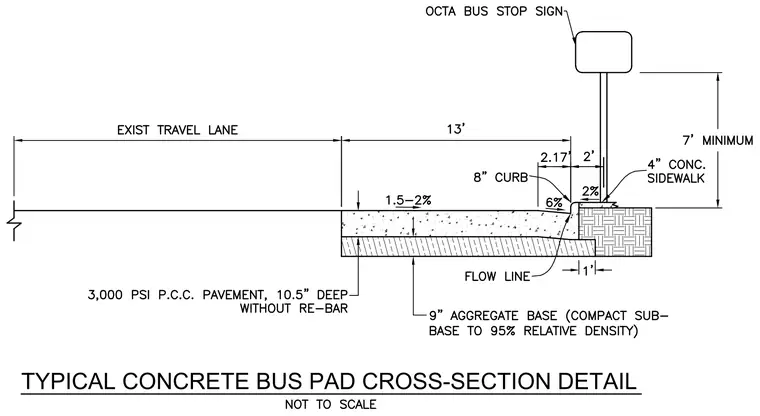

The assembly consists of a 10.5-inch deep 3,000 PSI Portland cement concrete pavement without rebar, supported by a 9-inch compacted aggregate base with a 95 percent relative density. The bus pad features a 1.5 to 2 percent cross-slope sloping toward an 8-inch curb with a flow line. Adjacent to the curb is a 4-inch concrete sidewalk and an octa bus stop sign positioned with a 7-foot minimum clearance. The travel lane transitions directly into the bus pad pavement section.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
