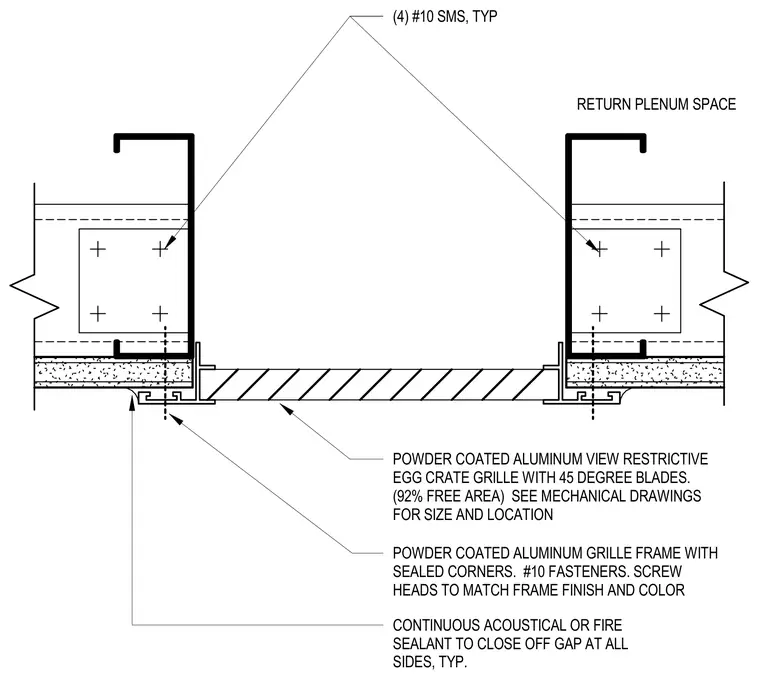

A powder coated aluminum view restrictive egg crate grille with forty-five degree blades sits within a powder coated aluminum grille frame featuring sealed corners and number ten fasteners with heads matching the frame finish and color. The frame secures to the surrounding assembly using four number ten sheet metal screws typically on each side. A continuous acoustical or fire sealant closes off the gap around all sides at the return plenum space.
CONTINUOUS ACOUSTICAL OR FIRE SEALANT TO CLOSE OFF GAP AT ALL SIDES, TYP. POWDER COATED ALUMINUM VIEW RESTRICTIVE EGG CRATE GRILLE WITH 45 DEGREE BLADES. (92% FREE AREA) SEE MECHANICAL DRAWINGS FOR SIZE AND LOCATION POWDER COATED ALUMINUM GRILLE FRAME WITH SEALED CORNERS. #10 FASTENERS. SCREW HEADS TO MATCH FRAME FINISH AND COLOR RETURN PLENUM SPACE (4) #10 SMS, TYP
