Architectural · A-8C7XE

Eave - West - Soffit

Elements

About this detail

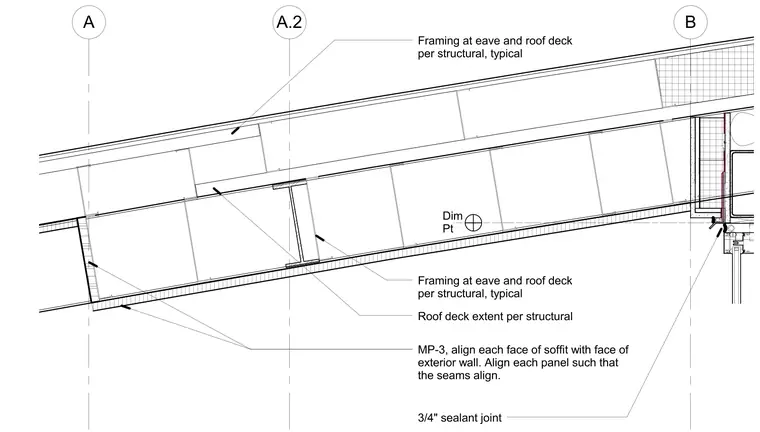

Metal panel MP-3 aligns flush with the face of the exterior wall at the eave and soffit junction. Panel seams align continuously across the assembly for visual consistency. Framing at the eave and roof deck is provided per structural requirements typically, with the roof deck extent coordinated accordingly. A three-quarter-inch sealant joint is detailed at the transition to the exterior wall assembly. Grid lines A, A.2, and B establish the dimensional reference points for the framing and panel layout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
