Interior Stair Bottom Landing with Channel Stringer

Materials

Concrete Steel Metal (misc.)

Elements

Stairs Railings / Guards Floors / Slabs Foundations / Footings Anchors / Embeds

Connections

Welded Connection

About this detail

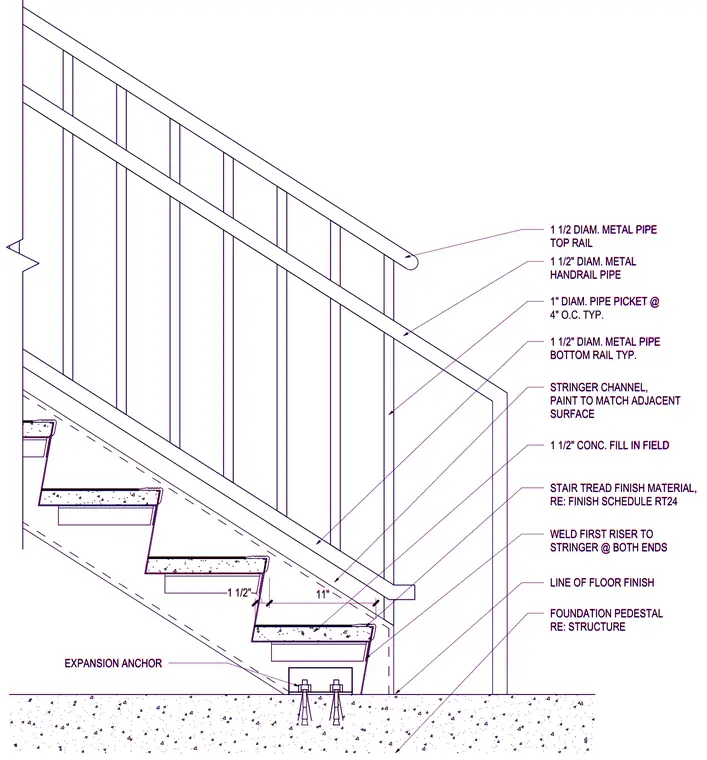

An interior stair bottom landing features a steel channel stringer anchored to a concrete foundation pedestal with expansion anchors. The assembly includes a one-and-a-half-inch concrete fill in the field, stair tread finish material per schedule RT24, and the first riser welded to the stringer at both ends. A pipe railing system is attached, consisting of a one-and-a-half-inch metal pipe top rail, one-and-a-half-inch handrail pipe, one-inch diameter vertical pickets spaced at four inches on center, and a one-and-a-half-inch bottom rail.
