A prefabricated trench drain with a removable stainless steel grate is set into a concrete slab topping. Steel angles size 2x2x1/4 inches with 1/4-inch diameter by 4-inch studs welded at 24 inches on center or two each side support the drain edge. An alternate angle size 3x1-1/2x1/4 inches with 3/8-inch diameter expansion bolts at 24 inches on center or two each side anchors the assembly to the surrounding concrete. The installation includes conditions at a ramp with a traffic coating finish and a loading dock entry with a heavy broom finish topping slab.

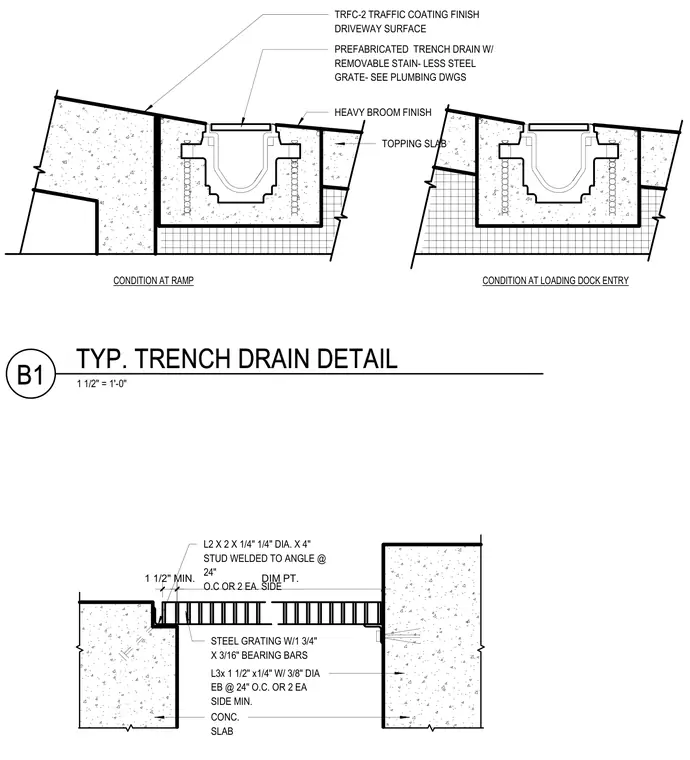

STEEL GRATING W/1 3/4" X 3/16" BEARING BARS L2 X 2 X 1/4" 1/4" DIA. X 4" STUD WELDED TO ANGLE @ 24" O.C OR 2 EA. SIDE CONC. SLAB L3x 1 1/2" x1/4" W/ 3/8" DIA EB @ 24" O.C. OR 2 EA SIDE MIN. 1 1/2" MIN. DIM PT. TRFC-2 TRAFFIC COATING FINISH DRIVEWAY SURFACE PREFABRICATED TRENCH DRAIN W/ REMOVABLE STAIN- LESS STEEL GRATE- SEE PLUMBING DWGS HEAVY BROOM FINISH TOPPING SLAB C O N D I T I O N A T R A M P C O N D I T I O N A T L O A D I N G D O C K E N T R Y 1 1/2" = 1'-0" B1 TYP. TRENCH DRAIN DETAIL
