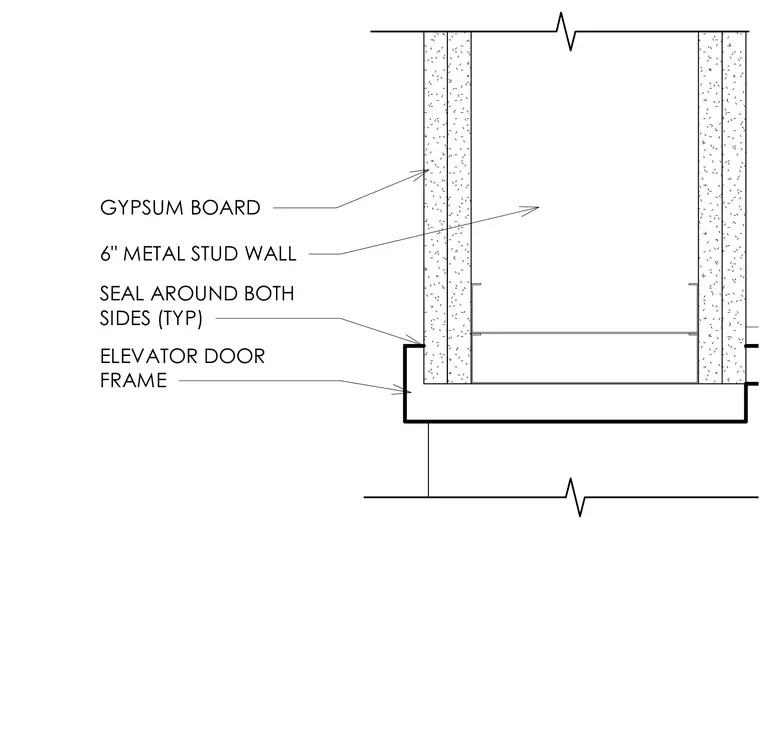

An elevator door frame integrates into a six-inch metal stud wall faced with gypsum board on both sides. A continuous sealant bead is applied around both sides of the frame junction typically to seal the assembly.
