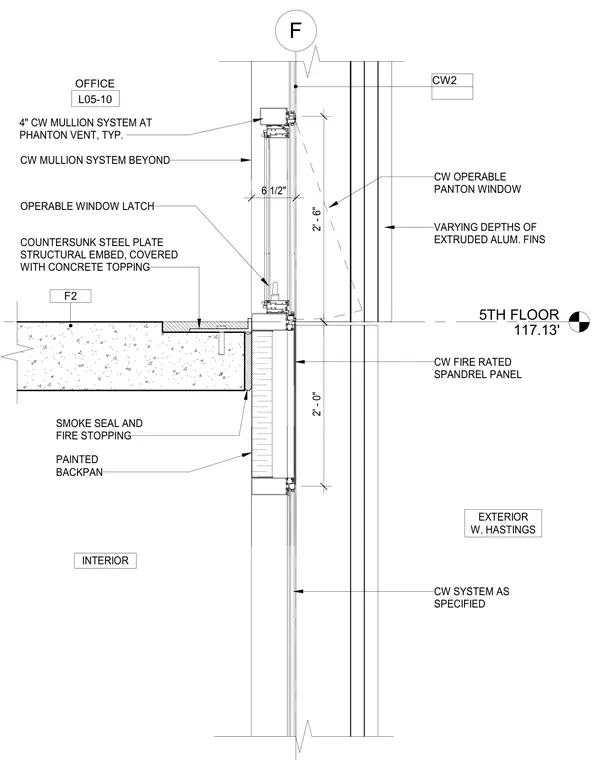

A curtain wall assembly at the fifth floor slab intersection incorporates an operable Panton window and varying depths of exterior extruded aluminum fins. The concrete slab edge features a countersunk steel plate structural embed covered with concrete topping. A smoke seal and fire stopping are installed at the slab edge above a painted backpan and a fire-rated spandrel panel. The curtain wall system includes a four-inch mullion system at the operable vent, a window latch, and additional mullions spanning beyond.
5TH FLOOR 117.13' F EXTERIOR W. HASTINGS INTERIOR CW OPERABLE PANTON WINDOW CW FIRE RATED SPANDREL PANEL SMOKE SEAL AND FIRE STOPPING VARYING DEPTHS OF EXTRUDED ALUM. FINS COUNTERSUNK STEEL PLATE STRUCTURAL EMBED, COVERED WITH CONCRETE TOPPING PAINTED BACKPAN 6 1/2" CW SYSTEM AS SPECIFIED 4" CW MULLION SYSTEM AT PHANTON VENT, TYP. CW MULLION SYSTEM BEYOND OPERABLE WINDOW LATCH 2' - 6" OFFICE L05-10 F2 CW2 2' - 0"
