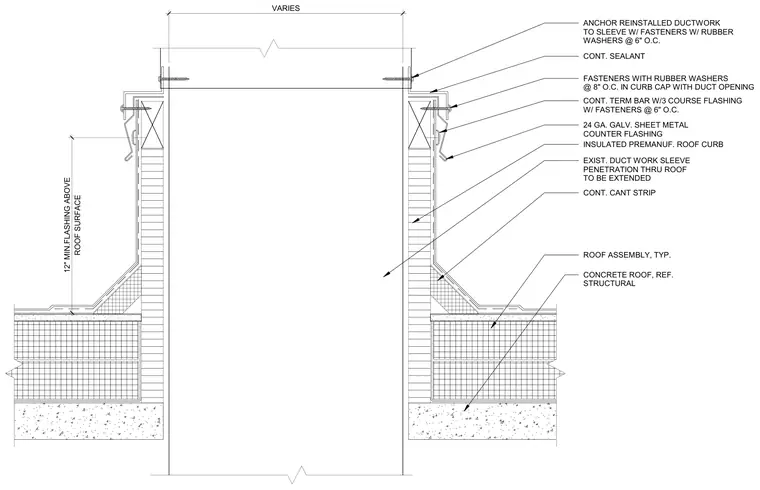

An existing ductwork sleeve penetrates through a concrete roof and extends upward inside an insulated premanufactured roof curb mounted over a continuous cant strip. The ductwork is reinstalled and anchored to the sleeve using fasteners with rubber washers spaced at six inches on center. A continuous sealant bead and twenty-four gauge galvanized sheet metal counter flashing protect the upper joint. A continuous termination bar with three-course flashing and fasteners with rubber washers at eight inches on center secures the curb cap around the duct opening. Flashings extend twelve inches minimum above the roof surface.
ROOF SURFACE 12" MIN.FLASHING ABOVE ROOF ASSEMBLY, TYP. CONCRETE ROOF, REF. STRUCTURAL VARIES ANCHOR REINSTALLED DUCTWORK TO SLEEVE W/ FASTENERS W/ RUBBER WASHERS @ 6" O.C. EXIST. DUCT WORK SLEEVE PENETRATION THRU ROOF TO BE EXTENDED INSULATED PREMANUF. ROOF CURB CONT. CANT STRIP CONT. TERM BAR W/3 COURSE FLASHING W/ FASTENERS @ 6" O.C. CONT. SEALANT FASTENERS WITH RUBBER WASHERS @ 8" O.C. IN CURB CAP WITH DUCT OPENING 24 GA. GALV. SHEET METAL COUNTER FLASHING
