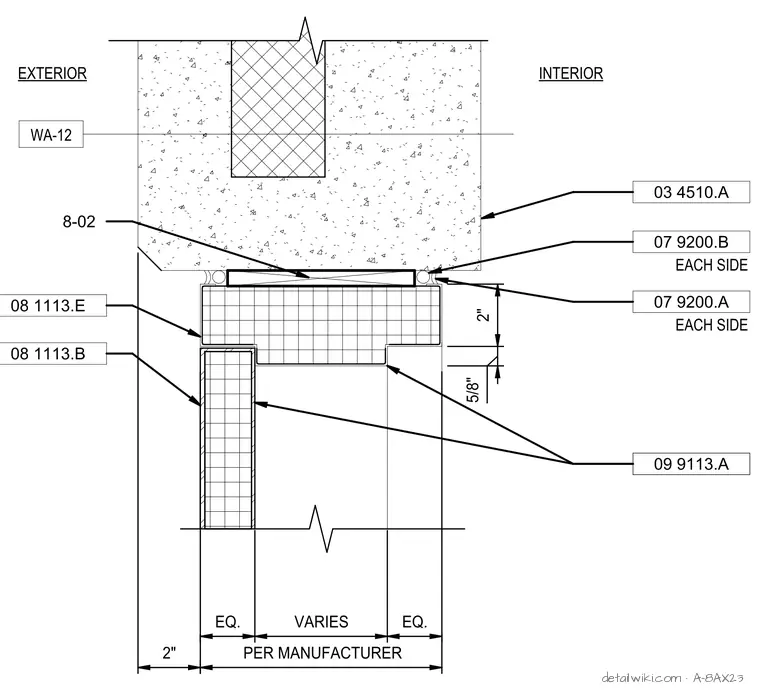

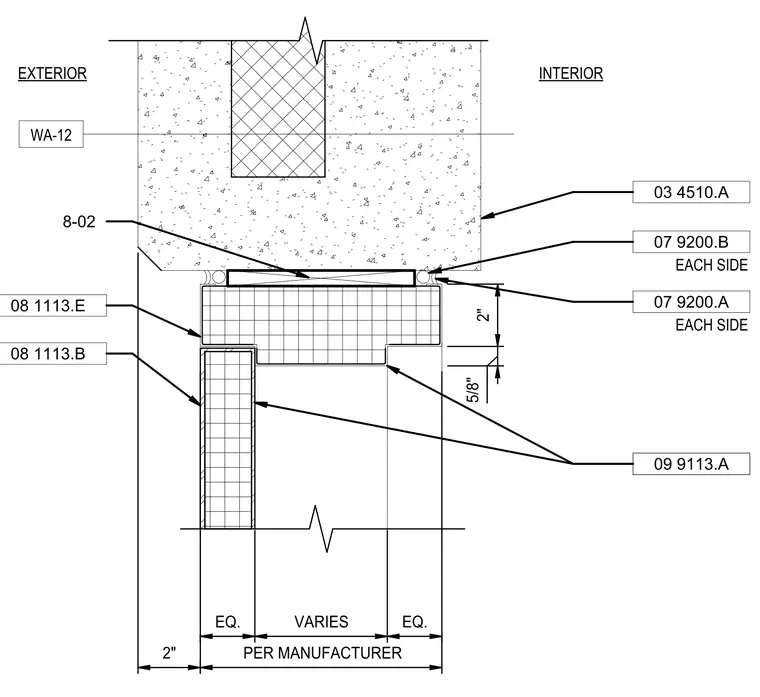

A hollow metal door frame is set into a concrete wall opening. A shim space between the frame and the concrete is sealed on the interior and exterior sides with sealant 07 9200.A and 07 9200.B. The frame profile features a 2-inch stop depth and a 5/8-inch reveal, with the overall frame width varying per manufacturer requirements. The concrete wall finish is 03 4510.A, and the door frame finish is 09 9113.A. The frame is anchored to the wall using components 08 1113.E and 08 1113.B.
