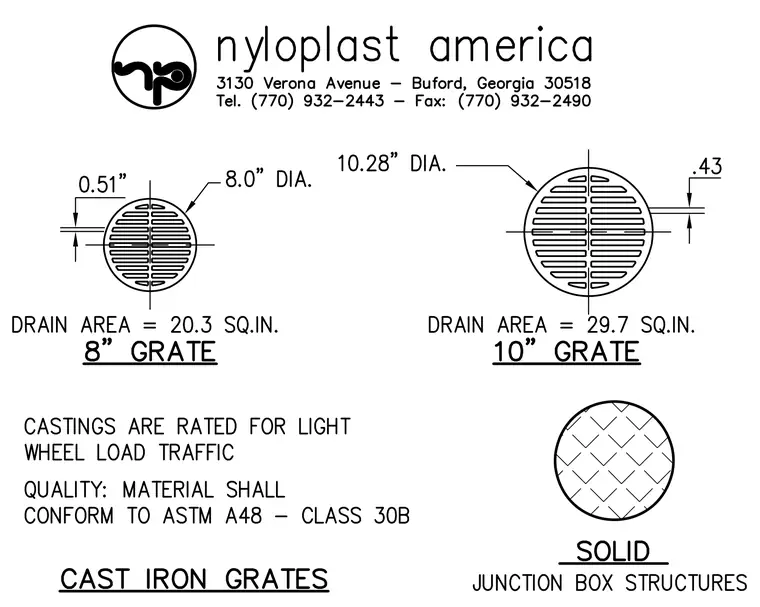

Nyoplast America manufactures cast iron grates and solid covers for junction box structures. An 8-inch diameter grate provides 20.3 square inches of drain area and a 10-inch diameter grate provides 29.7 square inches of drain area. A solid cover is included for junction box structures. All castings are rated for light wheel load traffic and material must conform to ASTM A48 Class 30B.
