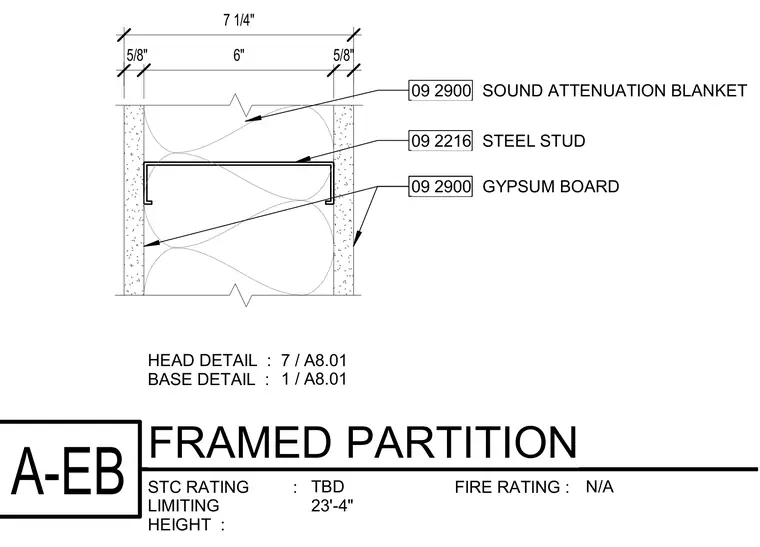

This interior partition detail shows a 6-inch steel stud framing member faced with 5/8-inch gypsum board on each side, achieving a total assembly thickness of 7-1/4 inches. A sound attenuation blanket fills the stud cavity for acoustic performance. Head and base detail references are provided for coordination with adjacent construction.
5/8" 6" 5/8" 7 1/4" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : A-EB FRAMED PARTITION TBD N/A 23'-4" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 09 2900 GYPSUM BOARD 09 2900 SOUND ATTENUATION BLANKET
