A-8AT2X — Steeple Bonding Detail

Architectural · A-8AT2X

Steeple Bonding Detail

Units: metric
Discipline: Architectural

Materials

Aluminum Metal (misc.)

Elements

Connections / Plates Roofs

Text on the drawing

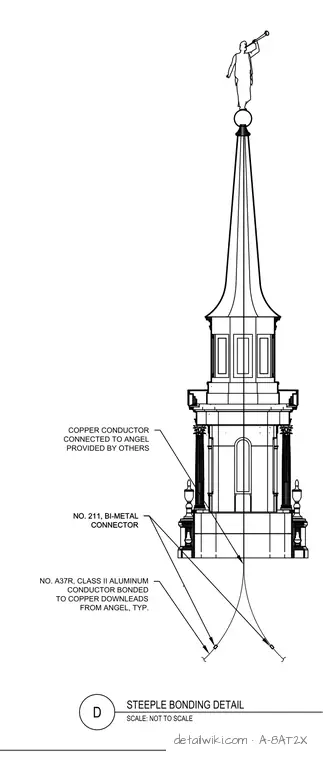

NO. A37R, CLASS II ALUMINUM CONDUCTOR BONDED TO COPPER DOWNLEADS FROM ANGEL, TYP. NO. 211, BI-METAL CONNECTOR COPPER CONDUCTOR CONNECTED TO ANGEL PROVIDED BY OTHERS NO. 211, BI-METAL CONNECTOR
