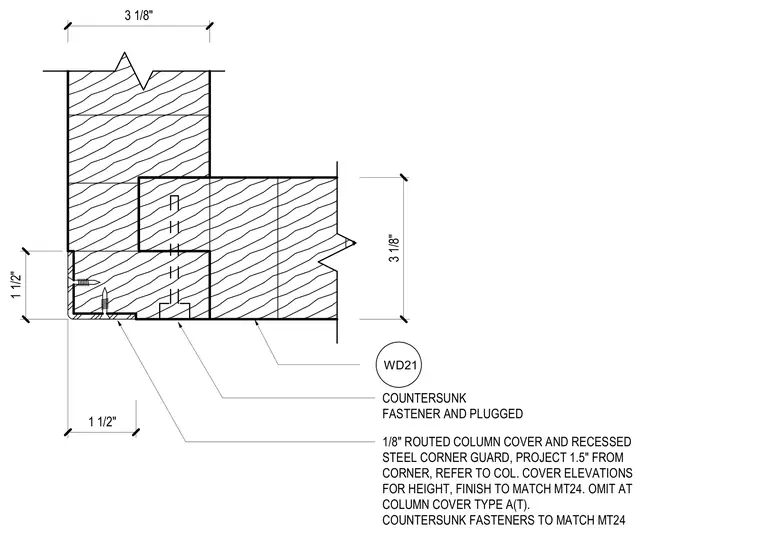

A wood column cover assembly features a dado corner joint secured with countersunk fasteners and plugged holes. A recessed steel corner guard projects one and a half inches from the corner and is attached using countersunk fasteners matching finish MT24. The routed wood column cover has a thickness of three and one-eighth inches, with a one and one-half inch leg projection at the corner. The finish matches MT24 and is omitted at column cover type A(T).
WD21 COUNTERSUNK FASTENER AND PLUGGED 3 1/8" 3 1/8" 1/8" ROUTED COLUMN COVER AND RECESSED STEEL CORNER GUARD, PROJECT 1.5" FROM CORNER, REFER TO COL. COVER ELEVATIONS FOR HEIGHT, FINISH TO MATCH MT24. OMIT AT COLUMN COVER TYPE A(T). COUNTERSUNK FASTENERS TO MATCH MT24 1 1/2" 1 1/2"
