Architectural · A-8AFQZ

Audio-Visual Box Backing and Wall Penetration Detail

Materials

Elements

Walls Partitions Floors / Slabs Insulation Roof / Floor Openings

About this detail

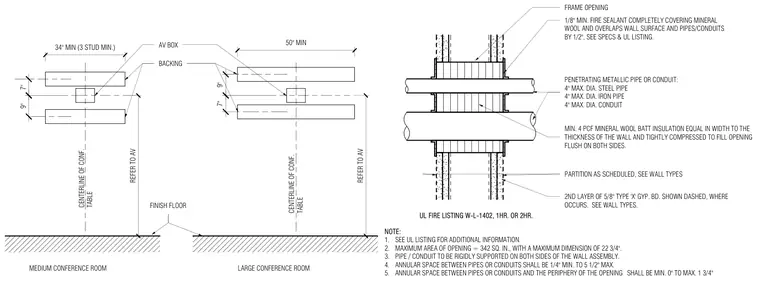

An audio-visual box is mounted on wood or metal backing within a framed partition wall, dimensioned relative to the conference table centerline and finish floor. A metallic pipe or conduit penetrates the wall assembly, which consists of a one-hour or two-hour partition with gypsum board layers as scheduled. The wall opening is packed tightly with a minimum four pounds per cubic foot mineral wool batt insulation equal in width to the wall thickness. An eighth-inch minimum fire sealant completely covers the mineral wool and overlaps the wall surface and penetrating pipes or conduits by a half-inch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
