Architectural · A-8ADPM

Stainless Steel Ladder Bracket and Safety Gate Assembly

Materials

Elements

About this detail

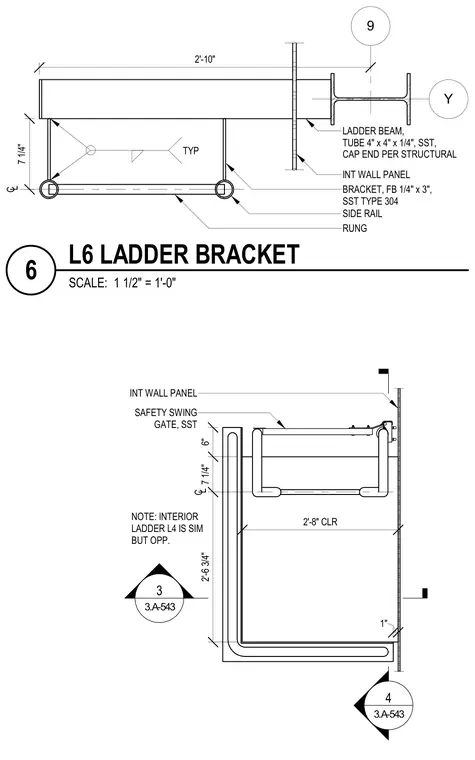

An interior ladder beam formed from a 4-inch by 4-inch by 1/4-inch stainless steel structural tube connects back to an interior wall panel and grid line Y. A stainless steel type 304 flat bar measuring 1/4 inch by 3 inches forms the bracket supporting the ladder side rails and rungs. A safety swing gate of stainless steel is positioned with a 2-foot 8-inch clear opening relative to the interior wall panel. Cap ends are provided per structural specifications.
