An acoustically rated partition receives a three-quarter-inch plywood panel faced with WP-5 material and electrical outlets. An eighth-inch aluminum angle aligns with the face of the WP-5 panel, backed by shims to the depth of the aluminum channel to conceal the gap at the horizontal clip rail as required. All penetrations through the assembly are sealed.

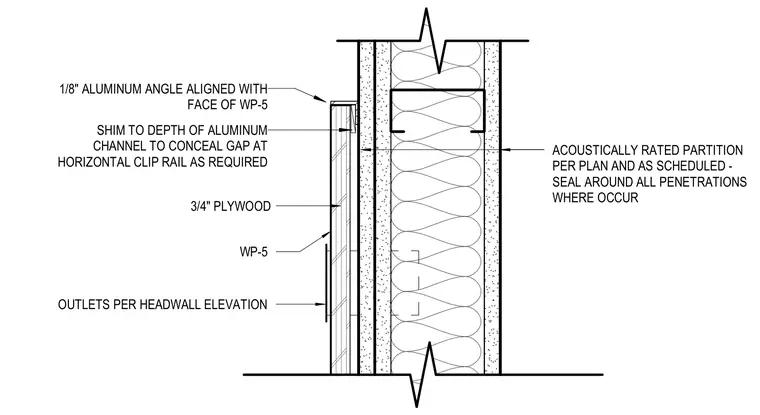

WP-5 OUTLETS PER HEADWALL ELEVATION ACOUSTICALLY RATED PARTITION PER PLAN AND AS SCHEDULED - SEAL AROUND ALL PENETRATIONS WHERE OCCUR 1/8" ALUMINUM ANGLE ALIGNED WITH FACE OF WP-5 SHIM TO DEPTH OF ALUMINUM CHANNEL TO CONCEAL GAP AT HORIZONTAL CLIP RAIL AS REQUIRED 3/4" PLYWOOD
