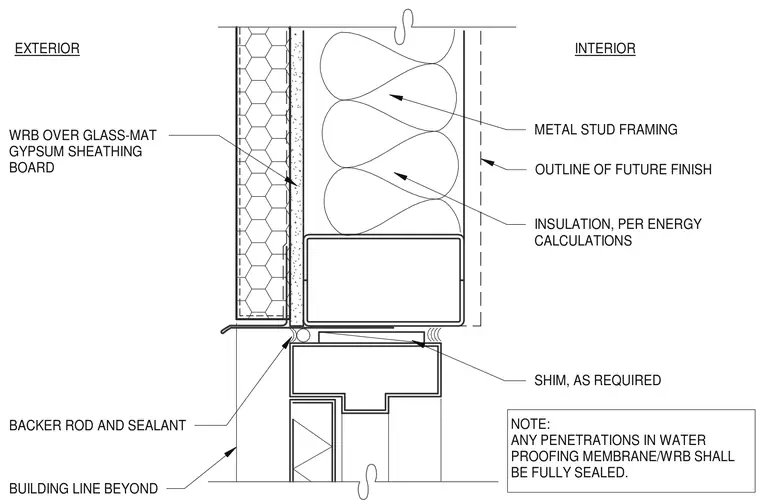

The head condition of a hollow metal door frame is set below exterior metal stud framing and glass-mat gypsum sheathing board. A weather-resistant barrier wraps the exterior sheathing down to a flashing at the frame intersection. Insulation fills the metal stud framing per energy calculations, bounded on the interior by an outline of future finish. Shims are placed as required between the rough opening and the door frame header, with backer rod and sealant applied at the exterior joint.
INSULATION, PER ENERGY CALCULATIONS WRB OVER GLASS-MAT GYPSUM SHEATHING BOARD METAL STUD FRAMING SHIM, AS REQUIRED INTERIOR EXTERIOR BACKER ROD AND SEALANT OUTLINE OF FUTURE FINISH NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. BUILDING LINE BEYOND
