Accessibility maneuvering clearances for sliding and folding doors under ICC A117.1 standards, providing front, pocket or hinge, and stop or latch approach configurations with required minimum dimensions.

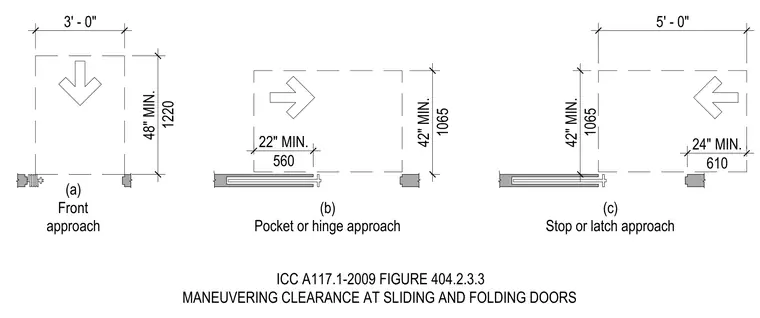

ICC A117.1-2009 FIGURE 404.2.3.3 MANEUVERING CLEARANCE AT SLIDING AND FOLDING DOORS (b) Pocket or hinge approach (a) Front approach (c) Stop or latch approach 1065 42" MIN. 1065 42" MIN. 610 24" MIN. 560 22" MIN. 3' - 0" 1220 48" MIN. 5' - 0"
