Architectural · A-8A3P7

Permanent Room and Space Signage Mounting and Typography Details

Materials

Elements

About this detail

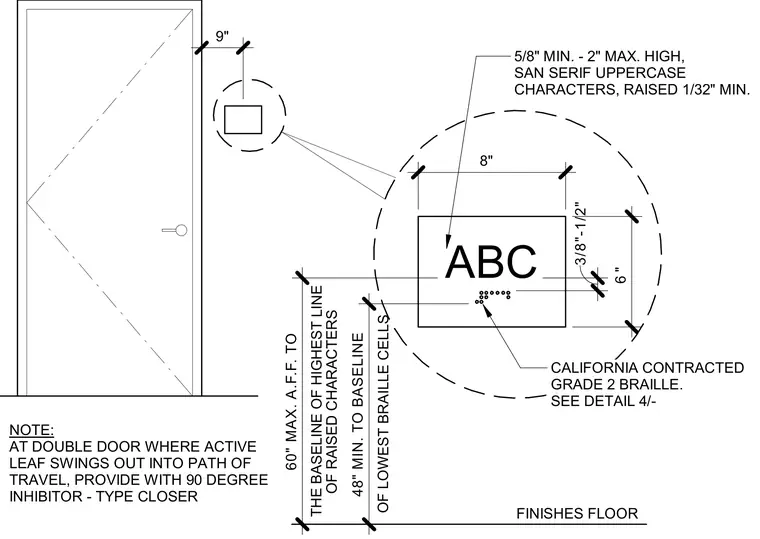

Permanent room and space signage is mounted with specific dimensional requirements relative to the finished floor and door frame. Raised characters are sans-serif uppercase, standing between five-eighths inch minimum and two inches maximum in height, and raised one-thirty-second inch minimum. California Contracted Grade 2 Braille is included below the text characters, with the baseline of the lowest braille cells positioned forty-eight inches minimum above the finished floor. The baseline of the highest line of raised characters is located sixty inches maximum above the finished floor. Signage is positioned nine inches from the door frame edge. At double doors where the active leaf swings out into the path of travel, a ninety-degree inhibitor-type closer is provided.
