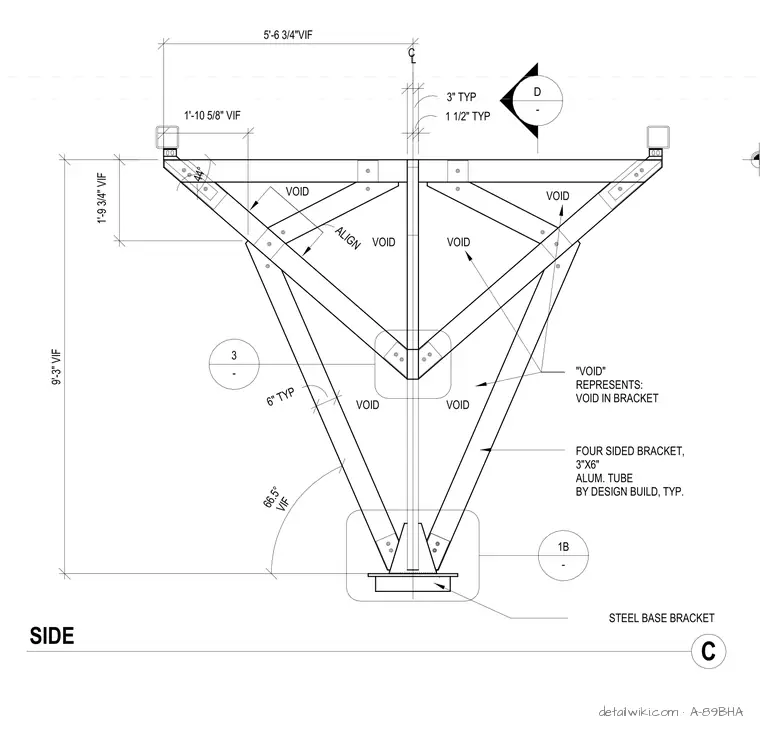

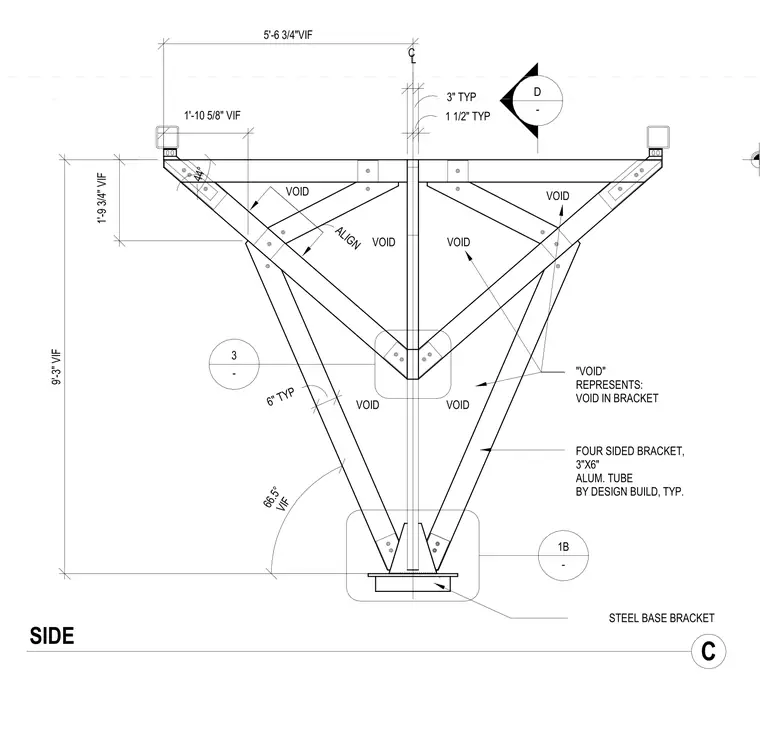

This structural canopy side detail features a four-sided bracket constructed from three-by-six-inch aluminum tubes by design build. The assembly integrates a steel base bracket at the anchorage point and includes designated void spaces within the structural bracket members. Dimensions indicate a height of nine feet three inches and a width of five feet six and three-quarter inches, with verifiable in-field dimensions throughout the framing geometry. Angled structural connections are detailed at forty-four degrees and sixty-six and a half degrees.
D - SIDE C 5'-6 3/4"VIF 9'-3" VIF 1'-9 3/4" VIF 44° 6" TYP 1'-10 5/8" VIF FOUR SIDED BRACKET, 3"X6" ALUM. TUBE BY DESIGN BUILD, TYP. 66.5° VIF 3" TYP 1 1/2" TYP ALIGN C L "VOID" REPRESENTS: VOID IN BRACKET VOID VOID VOID VOID VOID VOID STEEL BASE BRACKET 1B - 3 -
