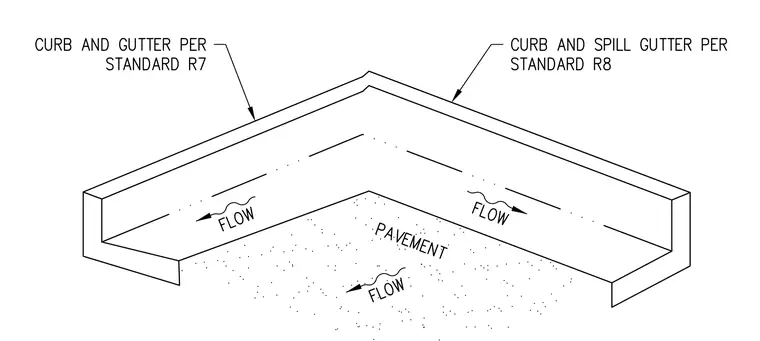

An eight-inch vertical curb and gutter per standard R7 transitions to a six-inch vertical curb and spill gutter per standard R8 at an exterior corner angle. Pavement is positioned below the curb assembly with directional flow arrows indicating drainage patterns. The isometric projection details the relative vertical dimension change between the two curb types.
