A stainless steel top is continuously supported by a hat channel bracing welded to the underside of the table top. A stainless steel leg connects to the assembly using a stainless steel gusset plate welded beneath the table structure. The edge features a raised rolled profile dimensioned with a 1-inch height, 1 1/2-inch width, and specific radii. Fabrication complies with NSF standards for commercial foodservice equipment.

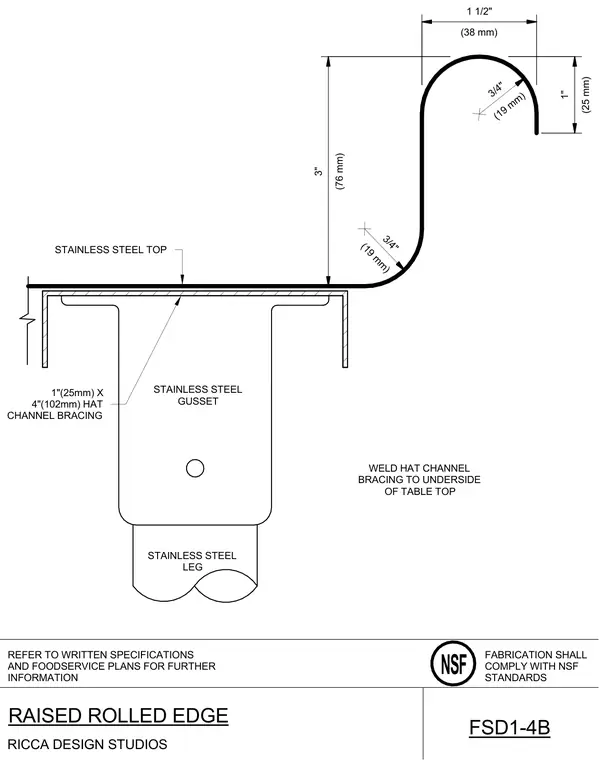

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSET STAINLESS STEEL LEG STAINLESS STEEL TOP WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP 1"(25mm) X 4"(102mm) HAT CHANNEL BRACING RAISED ROLLED EDGE FSD1-4B (25 mm) 1" (38 mm) 1 1/2" (76 mm) 3" (19 mm) 3/4" (19 mm) 3/4"
