Gypsum wall board is held one-quarter inch minimum clear from the concrete floor slab and sealed airtight with sealant. A resilient wall base is applied over the lower portion of the partition. Floor finishes are installed as specified in the finish schedule where applicable over the concrete deck.

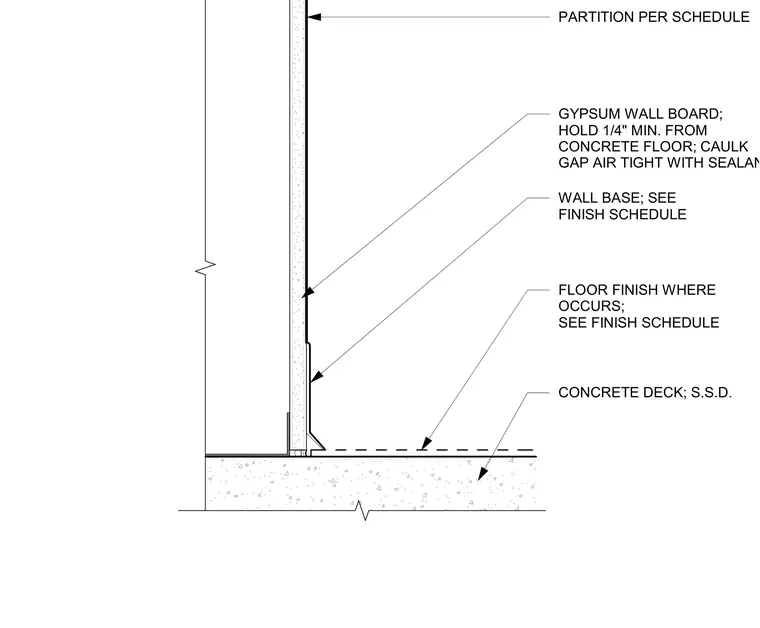

PARTITION PER SCHEDULE GYPSUM WALL BOARD; HOLD 1/4" MIN. FROM CONCRETE FLOOR; CAULK GAP AIR TIGHT WITH SEALANT CONCRETE DECK; S.S.D. WALL BASE; SEE FINISH SCHEDULE FLOOR FINISH WHERE OCCURS; SEE FINISH SCHEDULE
