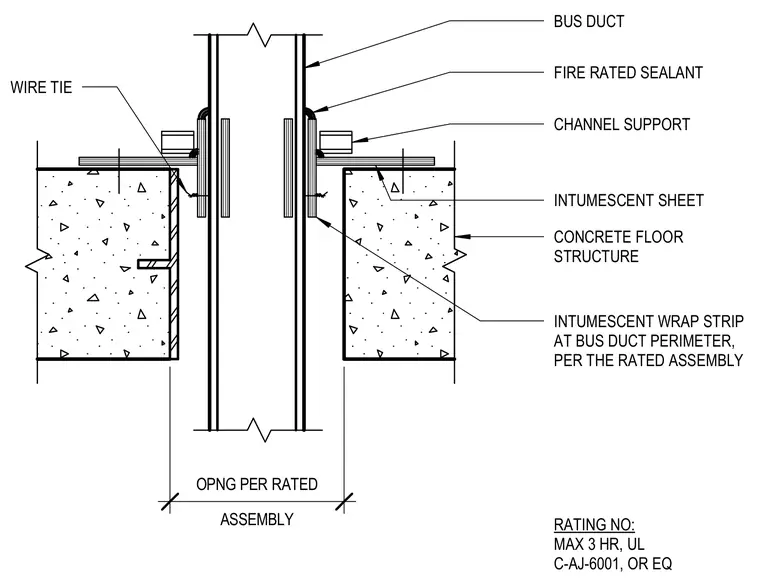

An intumescent wrap strip and intumescent sheet line the perimeter of a bus duct penetrating a concrete floor structure. Channel supports secure the assembly while wire ties stabilize the intumescent sheet against the opening. Fire-rated sealant is applied at the top joint between the bus duct and the floor slab. The installation complies with rated assembly UL C-AJ-6001 for a maximum 3-hour rating.
ASSEMBLY OPNG PER RATED BUS DUCT FIRE RATED SEALANT CHANNEL SUPPORT INTUMESCENT SHEET CONCRETE FLOOR STRUCTURE INTUMESCENT WRAP STRIP AT BUS DUCT PERIMETER, PER THE RATED ASSEMBLY RATING NO: MAX 3 HR, UL C-AJ-6001, OR EQ WIRE TIE
