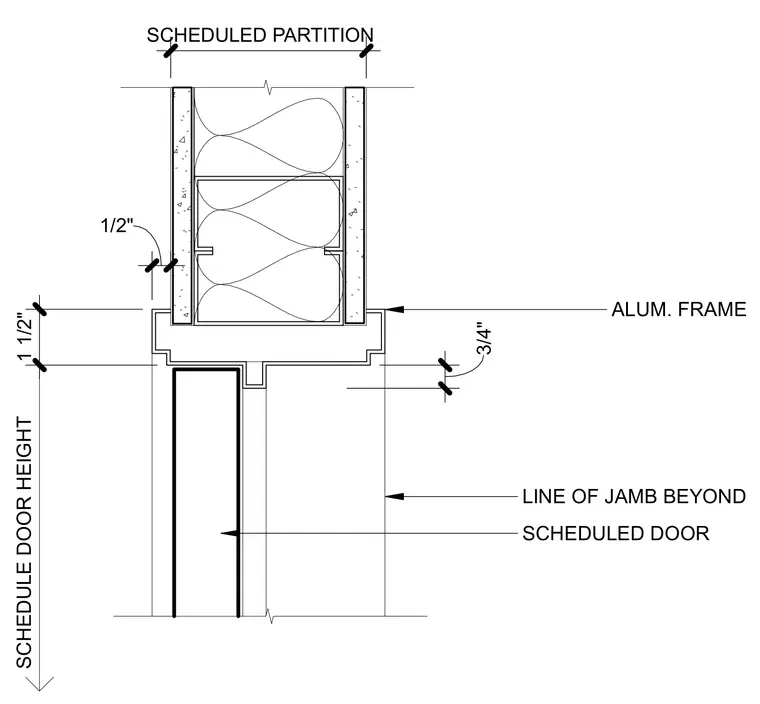

An aluminum door frame head is set within a scheduled partition assembly above a scheduled interior door. The aluminum frame features a profile with specific clearances, including a one-half-inch dimension to the partition edge, one and one-half inches of vertical frame engagement, and a three-quarter-inch offset. The line of the jamb extends beyond the frame into the opening, while the door height is governed by the scheduled door elevation.
1/2" 1 1/2" SCHEDULED DOOR LINE OF JAMB BEYOND ALUM. FRAME 3/4" SCHEDULED PARTITION SCHEDULE DOOR HEIGHT
