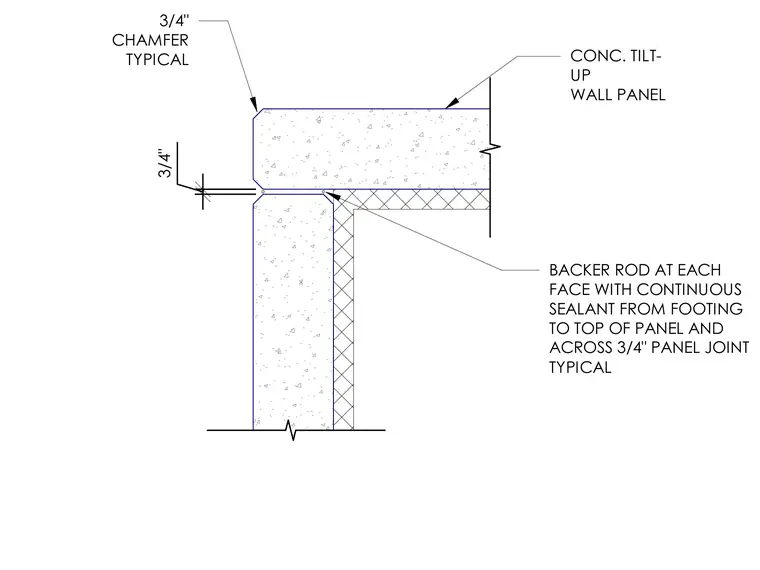

A three-quarter-inch joint separates intersecting concrete tilt-up wall panels at building corners. A backer rod is installed at each face of the panel joint with continuous sealant extending from the footing to the top of the panel and across the joint. Both exterior intersecting panel edges feature a typical three-quarter-inch chamfer.
CONC. TILT- UP WALL PANEL BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL 3/4" 3/4" CHAMFER TYPICAL 1 X Ar-
