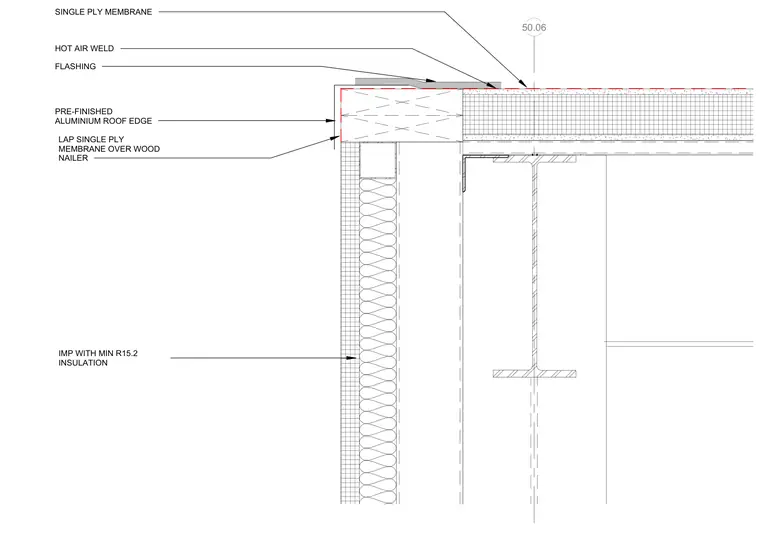

A single-ply membrane extends across the roof assembly and laps over a wood nailer. A pre-finished aluminum roof edge flashing caps the perimeter wood framing, secured with a hot-air weld at the membrane lap. The insulated metal panel wall below incorporates a minimum R15.2 insulation value.
50.06 SINGLE PLY MEMBRANE HOT AIR WELD FLASHING PRE-FINISHED ALUMINIUM ROOF EDGE LAP SINGLE PLY MEMBRANE OVER WOOD NAILER IMP WITH MIN R15.2 INSULATION
